Oil drilling fluid shale shaker screen basket and basket angling mechanism

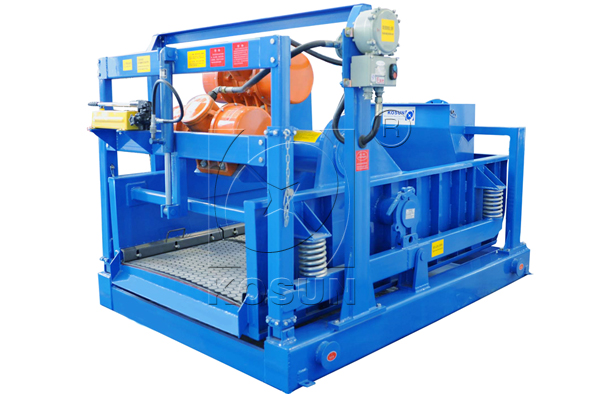

Shale shaker is the first stage solids control equipment in the drilling rig, to separate the big drilling cuttings or generally called solids out of the drilling mud. A complete shale shaker is consist of shaker base, screen basket, screen, vibration motor, feeding weir, basket angle adjustment system while drilling (AWD), explosion-proof switch, etc. KOSUN, as a professional manufacturer on solids control equipment, has much design & product experience on shale shaker, desander, desilter, centrifuge, centrifugal pump, mud agitator, vacuum degasser, etc.
Drilling fluid shale shaker separate solids from liquids by utilizing a vibrating basket, which is outfitted with specially designed and sized shale shaker screens. Shakers are considered the most important tool for removing drilled solids. These units remove the majority of drilled solids generated during the typical drilling process. Shale shakers typically generate between five to over eight G-forces of energy for removing solids from the mud system.

Screen Basket- Also known as the screen "bed" it is the most important part of the machine, it is responsible for transferring the shaking intensity of the machine, measured in "G's", while keeping the "shaking" motion even throughout the entire basket. It must do all that while holding the screens securely in place, eliminating drilled solids bypass to the hopper and allowing for easy operation and maintenance of the machine. Different brands of shakers have different methods of fulfilling these demands by using specialized screen tensioning apparatus, rubber seals around the screens, basket reinforcement to limit flex, rubber Float Mounts rather than springs, rubber Deck seals and selective vibrator placement.
Basket Angling Mechanism- The shaker basket must be capable of changing its angle to accommodate various flow rates of drilling fluids and to maximize the use of the shaker bed, this is where the angling mechanism plays an important part.
KSOUN products include: drilling fluids recycling system equipment such as shale shaker, decanter centrifuge, desander, desilter, mud cleaner,vacuum degasser, sand pump, centrifugal pump,jet mud mixer,agitator and mud tank, and horizontal centrifuge and decanter centrifuge with a large length-diameter ratio, at a high rotating speed and in full automatic control and used in environmental protection, chemical industry, fruit juice and some other industries.Besides,KOSUN provides the drilling waste management equipments and complete solids control system which can be applied to any regions in the world.
